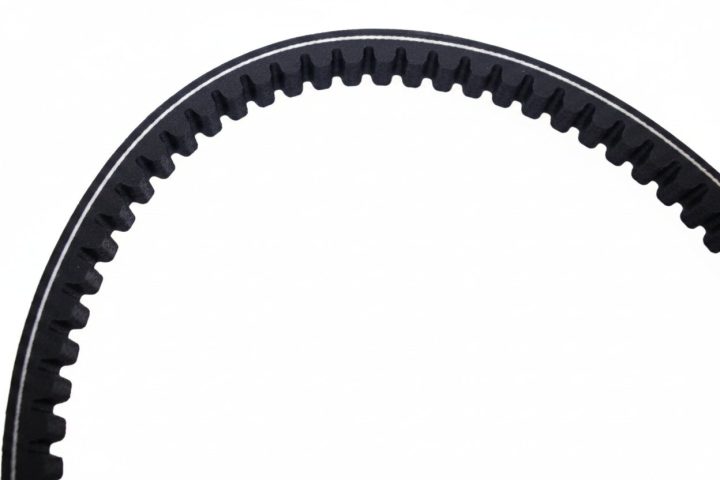

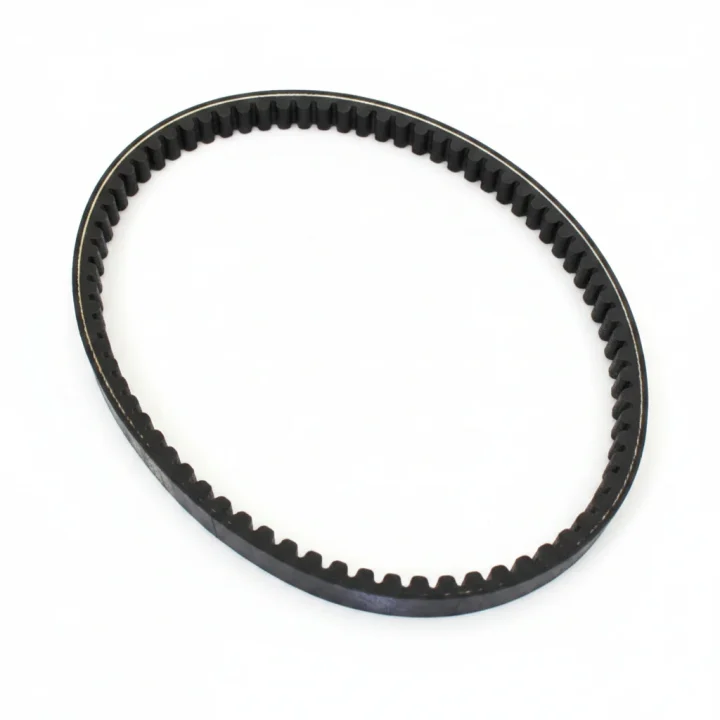

Bando 743-20-30 Premium CVT Drive Belt – Short Case GY6

• Reliable Bando Quality: Manufactured in Japan by Bando, this CVT drive belt is designed for dependable performance in compatible scooter transmission systems.
• Smooth Power Transfer: Replaces worn or slipping belts to help restore consistent power delivery from the variator to the rear pulley.
• Reinforced Rubber Construction: Designed to withstand the heat, flexibility demands, and operating stresses associated with continuously variable transmissions.
• Dependable CVT Performance: Supports smooth acceleration and consistent belt engagement during everyday riding.
• Precision Belt Sizing: Features a 743mm length, 20mm top width, 30° angle, and 9.5mm thickness for compatible applications.
• Wide Application Range: Suitable for listed Genuine Buddy models and selected short-case GY6 125cc/150cc scooters, go-karts, and ATVs that require this belt size.
• Easy Replacement: Check the size marking on your original belt to help confirm compatibility before purchasing.

Technical Specifications

• Brand: Bando
• Part Number / SKU: 106-125
• Manufacturer Part Number: 743-20-30-9.5
• Belt Length: 743mm
• Top Width: 20mm
• Angle: 30°
• Thickness: 9.5mm
• Material: Reinforced rubber
• Country of Origin: Japan
• Application: Compatible Genuine Buddy models and short-case GY6 125cc/150cc CVT systems

Vehicle Compatibility

• Genuine: Buddy 125, Buddy 150, Buddy 170i
• Short-Case GY6: Selected 125cc/150cc scooters, go-karts, and ATVs requiring a 743 × 20 × 30 belt.

Important Fitment Notes

• Verify the original belt size and engine configuration before ordering.
• Short-case GY6 engines are commonly found in some scooters with 10-inch rear wheels, as well as select ATVs and other vehicles.
• Not suitable for standard 50cc 139QMB applications.
