Product Name: Green Line 48V 1.8A Intelligent Battery Charger.
-
Output Voltage: 48V DC.
-
Output Current: 1.8A.
-
Input Voltage: 100–240V AC.
-
Input Frequency: 50/60Hz.
-

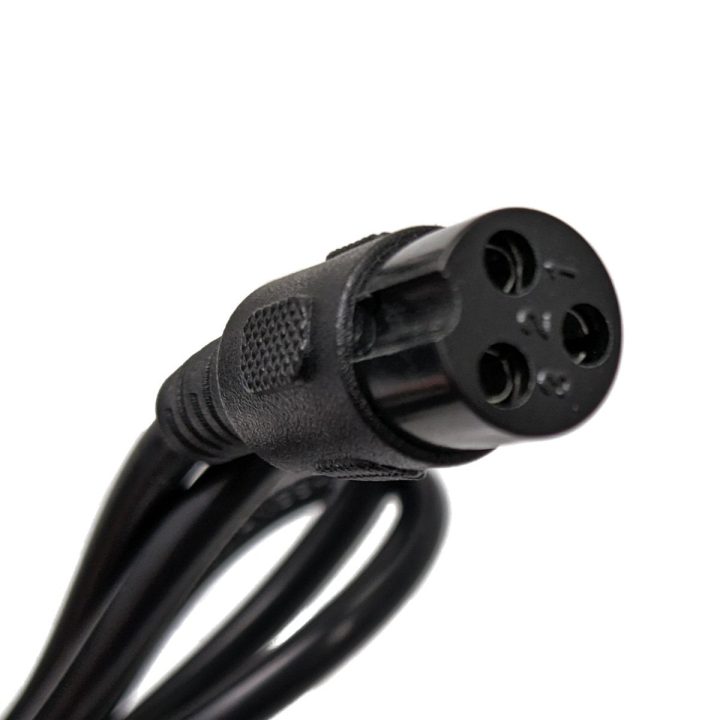

Connector Type: 12mm, 3-hole (3-pin) female plug.
-
Charging Indicator:
-
Red Light: Battery is charging.
-
Green Light: Battery is fully charged or the charger is in standby mode.
-
-
Intelligent Charging: Multi-stage charging circuitry monitors the battery’s charging state to support efficient charging and help maintain battery life.
-
Maintenance Mode: Designed to transition to a maintenance or standby state when charging is complete, according to the charger’s control system.
-
Safety Protections: Includes protection against overload, short circuits, and reverse polarity.
-
Weight: 1.3 lbs.
-
Country of Origin: China.
Compatible Vehicles and Battery Systems
-
MotoTec: 500W Electric Trike, all versions, provided the charging connector and electrical specifications match.
-
Electric Trikes: Compatible 48V electric trikes with a matching 12mm, 3-hole charging port.
-
Electric Scooters: Select 48V electric scooter models with compatible charging requirements.
-
Electric Bikes: Select 48V e-bikes with a matching charging connector.
-
Battery Systems: Compatible 48V lead-acid or lithium-ion (Li-ion) battery systems, provided the battery chemistry and charging requirements are supported by the charger.
Important Compatibility and Safety Notes
-
Verify the connector before ordering: Ensure your vehicle’s charging port matches the 12mm, 3-hole (3-pin) female connector.
-
Confirm that the charger’s output voltage, current, polarity, and charging profile are suitable for your specific battery.
-
Do not assume compatibility based on voltage and connector shape alone, particularly for lithium-ion and lead-acid batteries.
-
Use the charger with a compatible 100–240V AC power supply.
-
Follow the vehicle and battery manufacturer’s charging instructions for safe operation.
